UrbanTrapeze® In-Line Drop Ceiling Cable Connector

Description

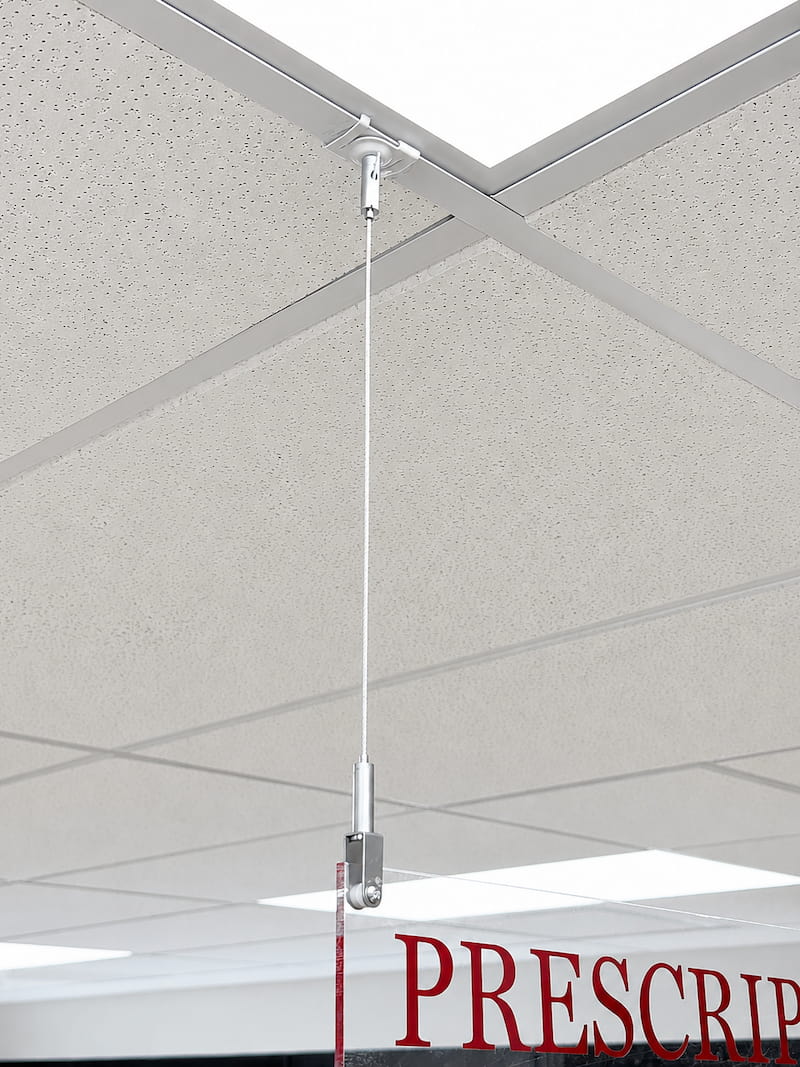

UrbanTrapeze® In-Line Cable Connector attaches to standard drop ceiling T-bar grid.  Built in UrbanTrapeze cable/brake system securely holds up to 1/16″ uncoated galvanized steel cable and with the push of a button, your ceiling display can be leveled and incrementally adjusted. Twist-on to easily install and locate for best visibility of signs and other ceiling displays.

Specifications:

• Compatible with 15/16″ standard drop ceiling T-bar grid
  • • Supports up to 30 lbs.
• Accepts uncoated galvanized 7 x 7 aircraft cable up to 1/16″ dia. (1.5mm)
• Integrated UrbanTrapeze cable adjuster locks cable, which can be adjusted with the push of a button.
• 1.5 in. L x 1.13 in. W x 1.85 in. H (38.1 x 28.7 x 46.99mm)

This part and the Steel Cable with Ball End and Sign Panel In-Line Connector available in UrbanTrapeze® Drop-Ceiling Hanging Cable Sign Holder Kit. –   See Product ID: 63-20100.

The following link takes you to the technical drawing for this part.

Product ID: 63-10005
