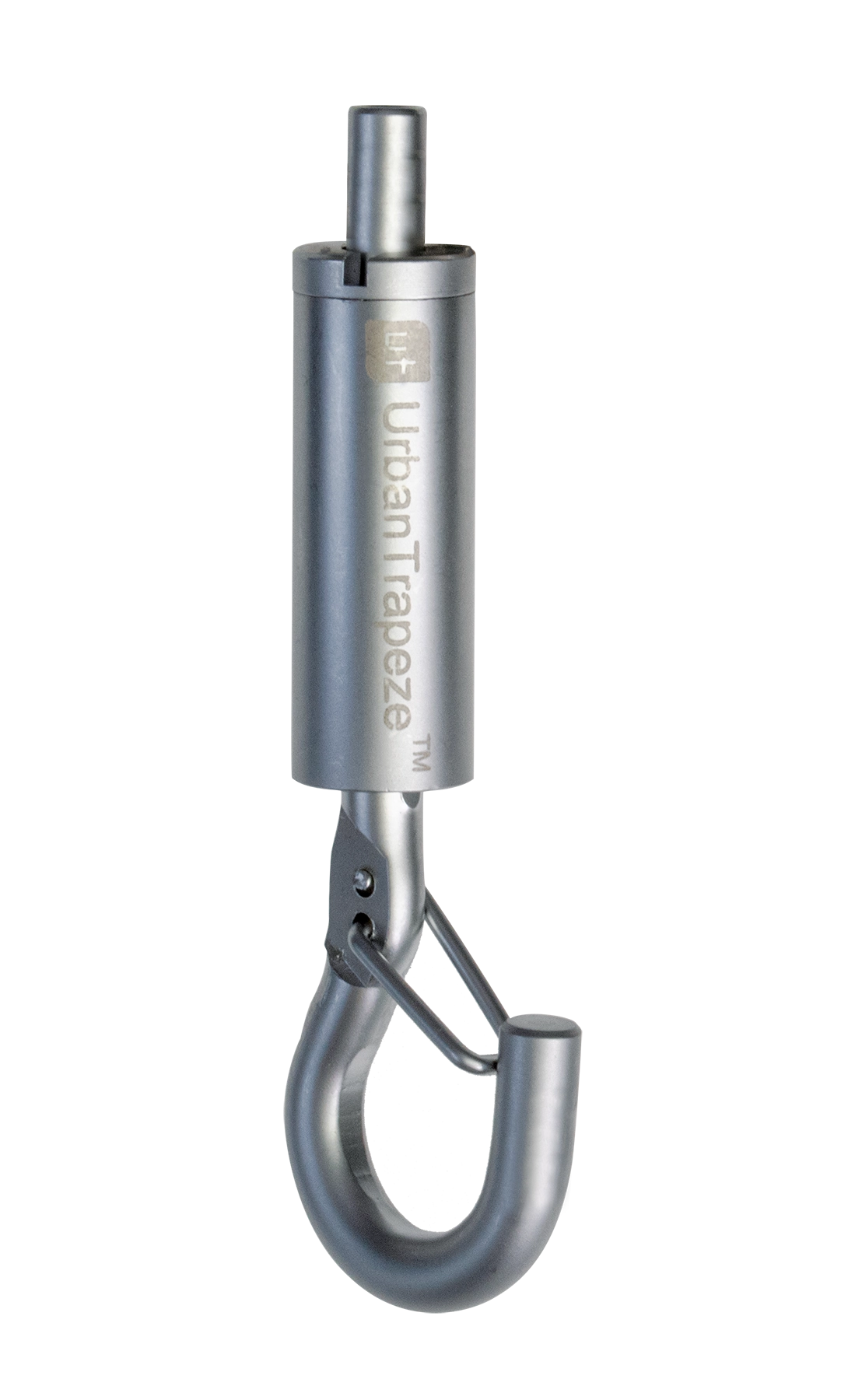

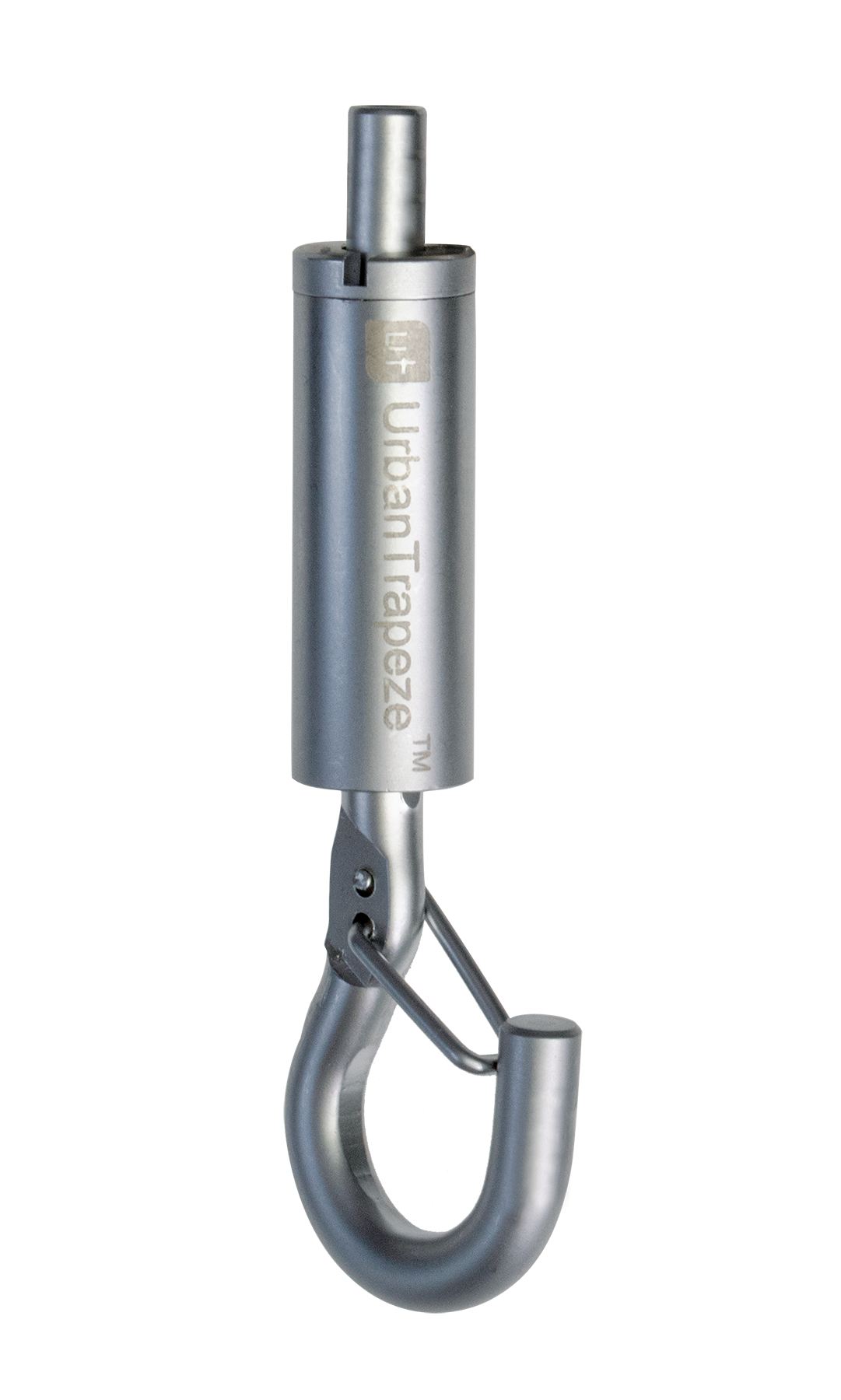

UrbanTrapeze® Gated J-Hook

Description

The UrbanTrapeze® Gated J-Hook allows for quick and easy connections and disconnections when hanging navigation signs, POP displays, lighting, electrical fixtures, acoustical panels, and baffle systems from ceilings. The clutch-button on top of the unit releases the cable brake locking mechanism, allowing for easy incremental adjustments to level or change the height of the item. A built-in spring-loaded gate creates a closed hook to securely hold items being hung  in a dynamic environment. Works in conjunction with 1/16 inch (1.5 millimeters) 7 x 7 uncoated galvanized steel aircraft cable.

The safe working load should not exceed 35 pounds (16kg).

How To Use

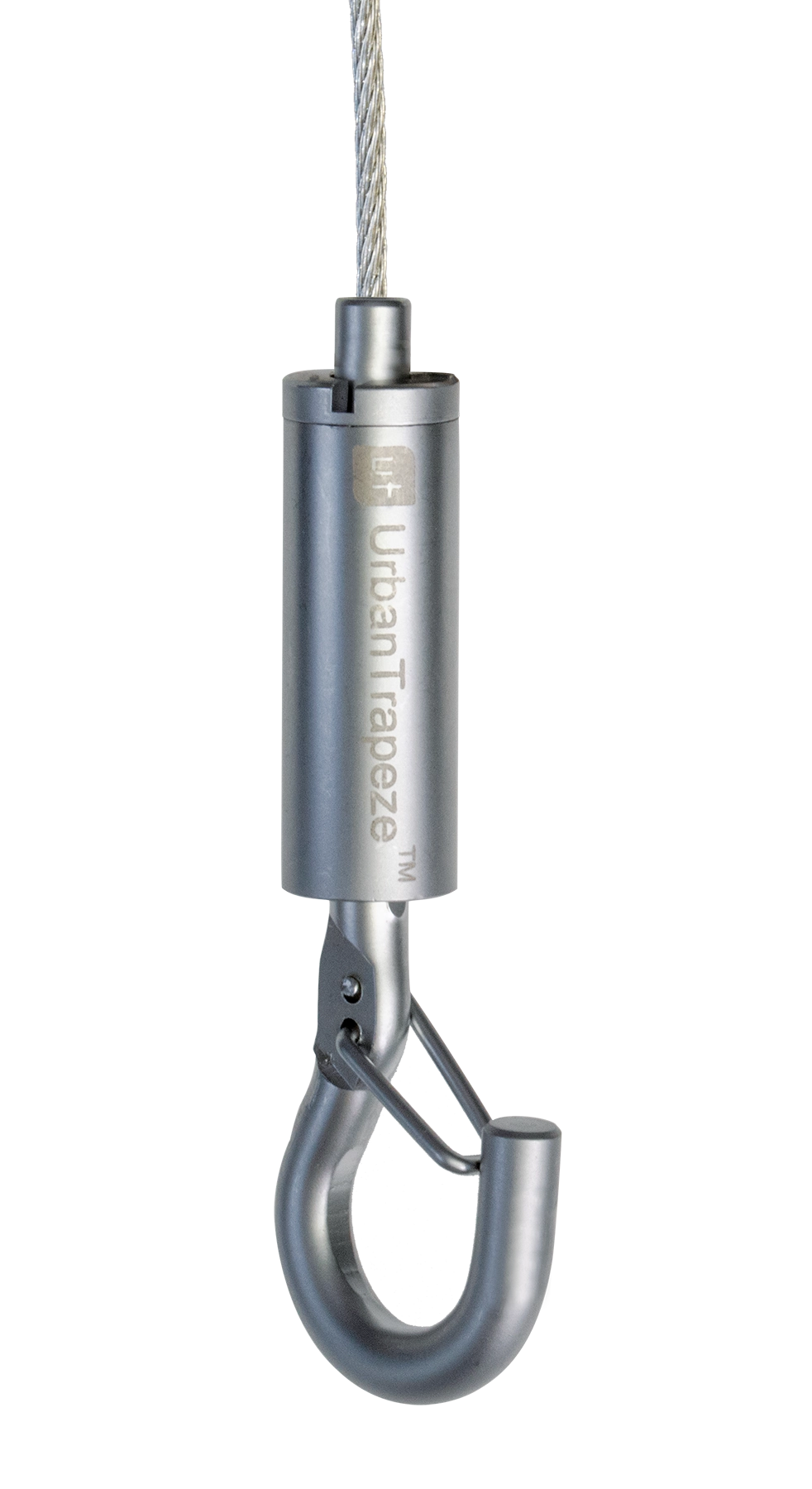

UrbanTrapeze™ Gated J-Hook is simple to use. Steel cable inserts thru the top of the hardware and exits from the side. Simply depress the top button to insert the cable and release the button to lock the cable in place. This keyless release provides easy push/pull adjustment when installing your ceiling display. Do not use on coated or painted steel cable. Compatible with stainless steel at a reduced holding power.

More Information

Aesthetically pleasing in appearance, easy to use and more secure compared to competitive products, this Gated J-Hook cable adjuster is perfect for applications in retail display, conference, or event venues or any environments with acoustical panels. Measures 2.25 inches x .75 inch (5.7 centimeters x 1.9 centimeters). Chrome plated brass and steel material.

.

Requires 1/16 inch (1.5 millimeters) 7 x 7 galvanized steel cable. Do not use with coated or painted steel cable.

Item #63-10001

Please request samples for testing in your usage environment before purchasing.
